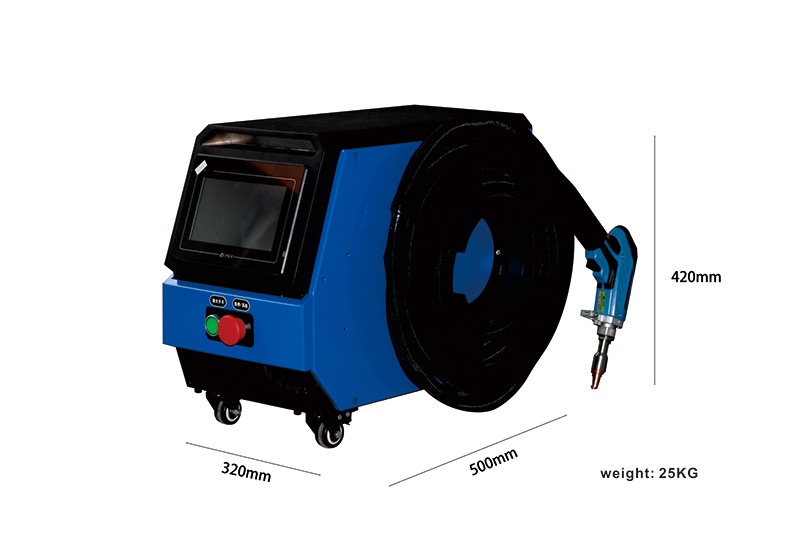

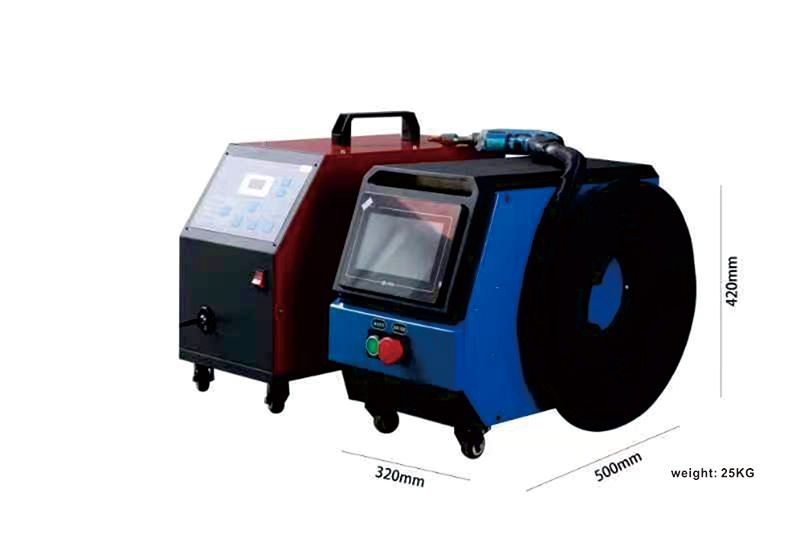

Air-cooled handheld laser welding machine
The air-cooled handheld laser welding machine is small, convenient and portable, and can easily adapt to various workplaces. The weld seams are beautiful and uniform with high finish. The welding quality is outstanding, and the accuracy and strength are guaranteed. The operation is simple, and even beginners can get started quickly.
It is applicable to a wide range of materials, such as stainless steel, aluminum alloy, carbon steel, etc. The energy-saving effect is remarkable, reducing energy consumption. The maintenance cost is low, and the structure is simple and easy to maintain. We provide high-quality after-sales service to solve problems in time.
In conclusion, it combines many advantages and is your ideal welding equipment. Don't miss it!
Parameter table of air-cooled handheld laser welding machine
Basic Parameter Table of Air-cooled Handheld Laser Welding Machine
| Basic parameters of air-cooled handheld laser welding machine | |||
| Model | JZ-FA-800 | JZ-FA-1500 | JZ-FA-2000 |
| Output power | 800W | 1500W | 2000W |
| Laser device energy consumption | ≤2500W | ≤3500W | ≤4500W |
| The energy consumption of the whole machine | ≤4500W | ≤5500W | ≤6500W |
| The weight of the whole machine | 23KG | 43KG | 62KG |
| Laser wavelength | 1080nm | ||
| Optical fiber length | 10-12M | ||

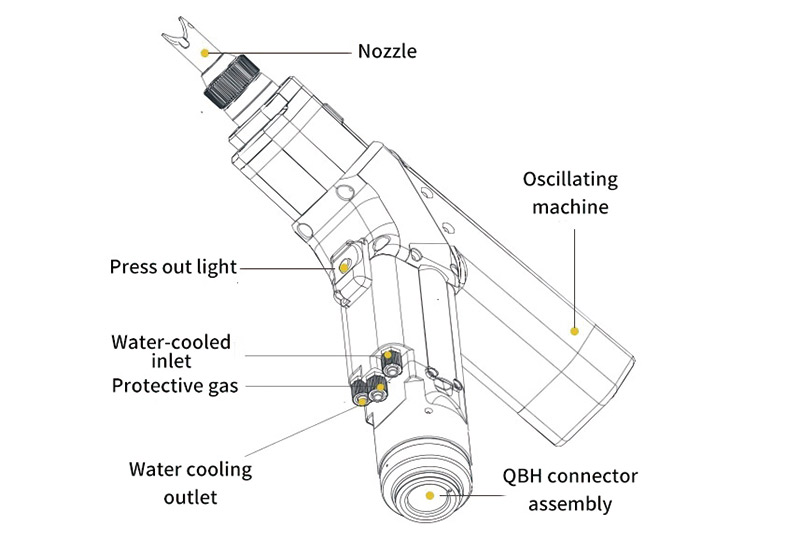

| The weight of the gun head | 0.8-1.0KG | ||
| Cooling method | Air-cooled | ||
| Working voltage | 220V | ||
| Applicable materials | Stainless steel, carbon steel, aluminium, copper and other metal materials | ||
Six major advantages, worry-free welding

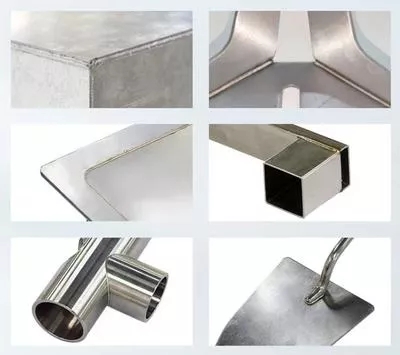

Application field
