Auto-focus Desktop Optical Fiber Laser Marking Machine

Short Description:

With the development of laser technology, the traditional laser marking machine is inconvenient to move, so our machine has an auto-focus auxiliary tool. The portable auto-focus laser marking machine uses a visual positioning system to achieve auto-focus marking without physical It can be done by moving the workpiece or laser marking machine permanently. The automatic adjustment of the focal length not only reduces the workload, but also improves the quality of product marking.


Product Detail

Product Tags

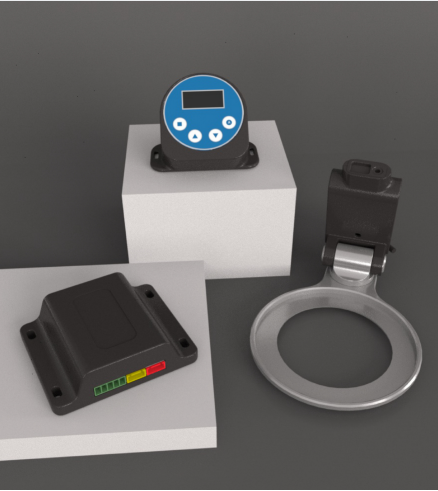

SPLIT AUTO FOCUS ING DEVICE

344

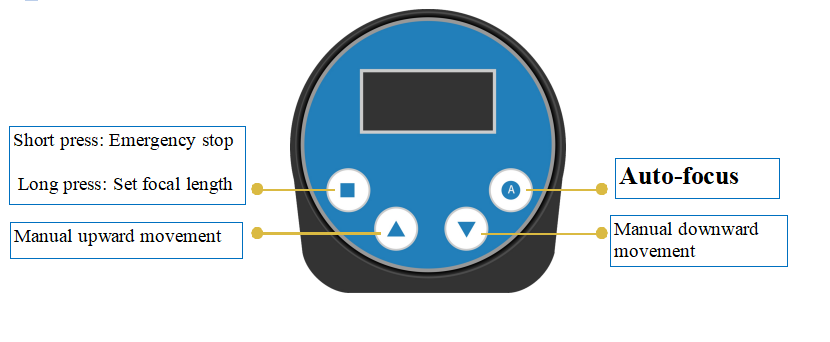

Autofocus_Operation Panel Description

20

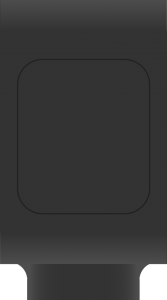

wq1 (3)

−L

Conventional Accuracy Distance Measurement Module

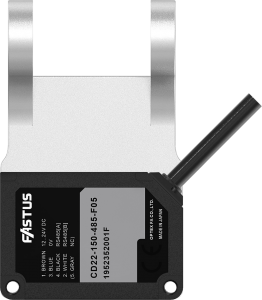

wq1 (4)

 −M

Medium Accuracy Distance Measurement Module

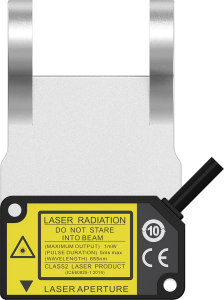

wq1 (5)

  −H

Highly accurate distance measurement module

Autofocus_Technical Parameterra

Model RKQ-AF-SP-H
Distance measurement module OPTEXCD22-100/OPTEXCD22-150
Measurement range 100±50(50-150mm)/150±100(50-250mm)
Repetition accuracy 20um /60um
Light spot diameter 0.6*0.7mm/0.5*0.55mm
Response time 4ms

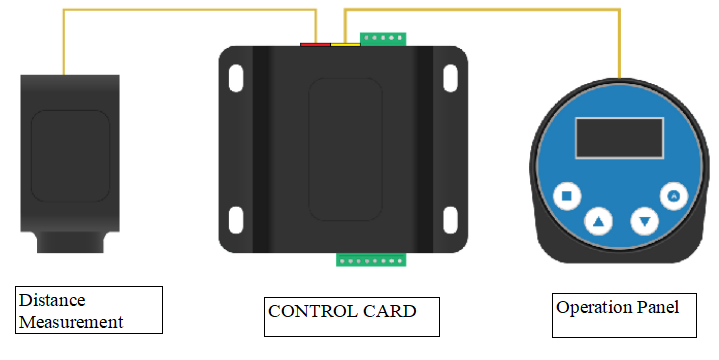

Autofocus_Control module description

017
