Large-scale Nonmetallic CO2 Laser Cutting Machine

Short Description:

Non-metal laser cutting machine generally relies on laser power to drive the laser tube to emit light, through the refraction of several reflectors, so that the light is transmitted to the laser head, and then the focusing mirror installed on the laser head will converge the light into a point, and this point can reach a very high temperature. Thus the purpose of cutting is achieved.

In general, the laser cutting machine used the laser tube that filled with CO2 as the main gas, so the laser cutting machine using this laser tube is called CO2 laser cutting machine.

Send email to us

Product Detail

Product Tags

✧ Machine Features

1. Cutting high precision, efficiency at the same time with two laser heads for processing and double increase.

2. equipped with imported lens, the lens is a small energy loss, high reflectivity, focused and strong, abrasion, easy to burst.

3. Motion structure imported linear guide and high-speed Stepper motor, can be off-line processing, user-friendly interface is easier to operate.

4. Cut a small slit with a fast, high precision.

5. Press the color marking parameters can be set to a variety of color separation cut.

✧ Application Advantages

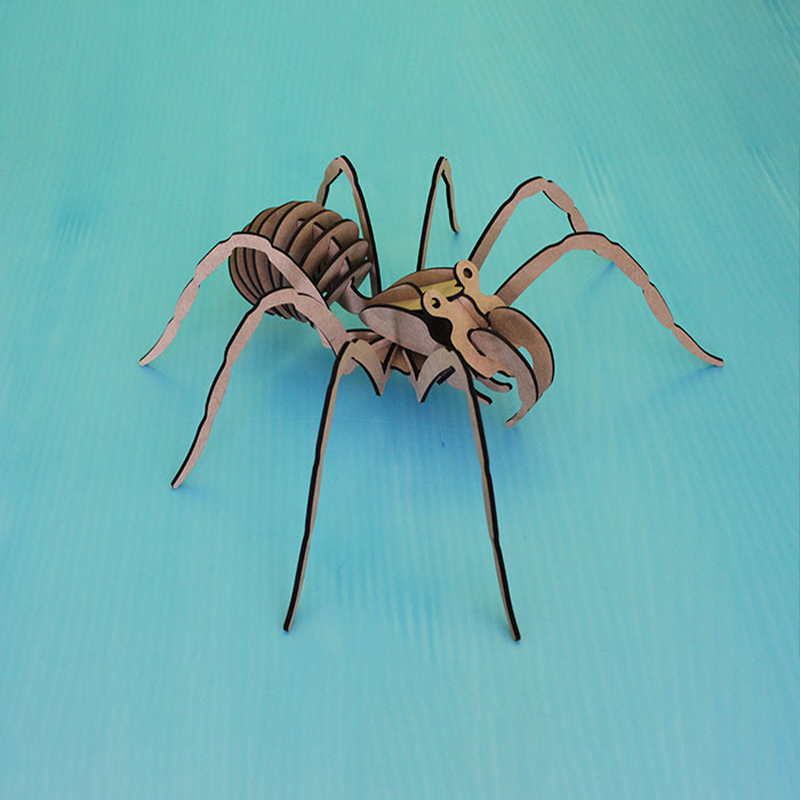

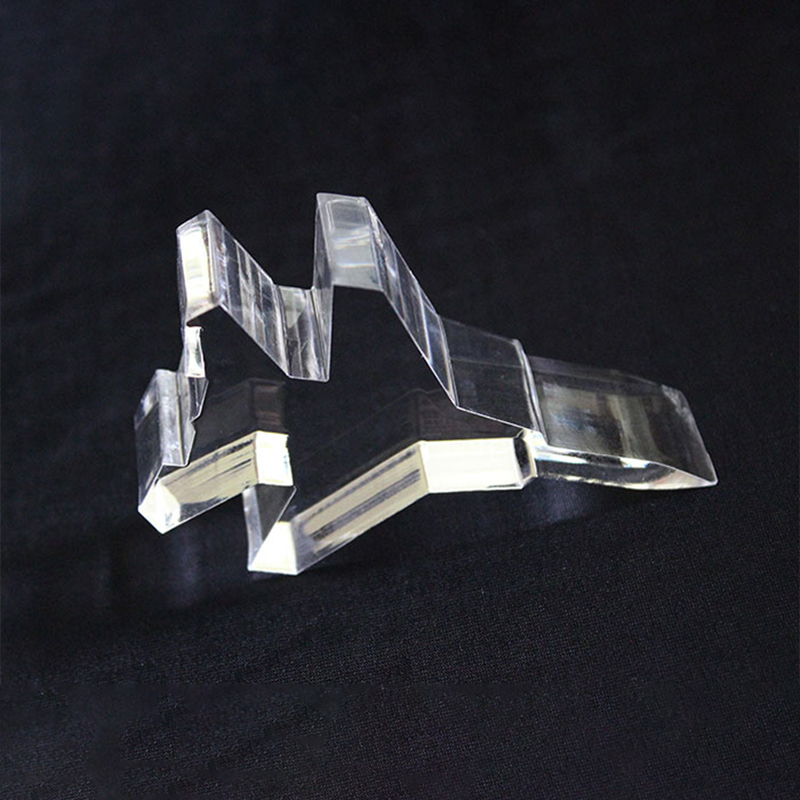

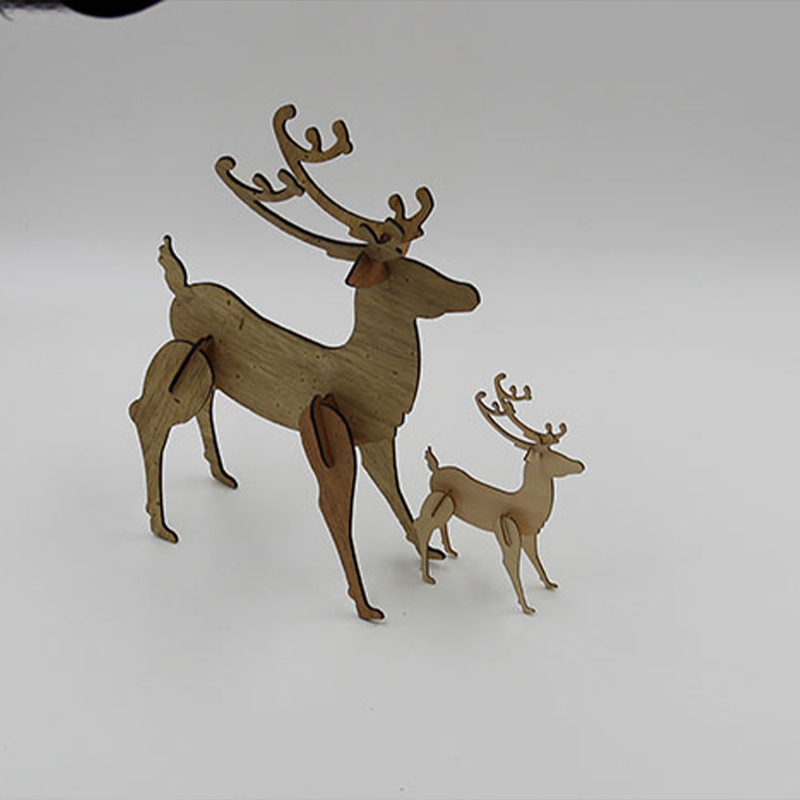

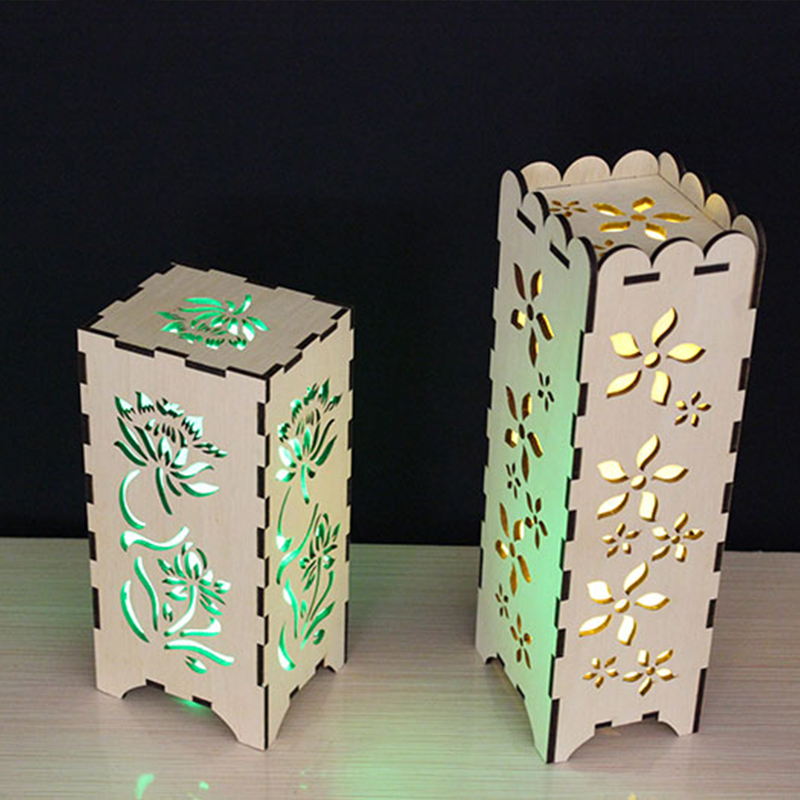

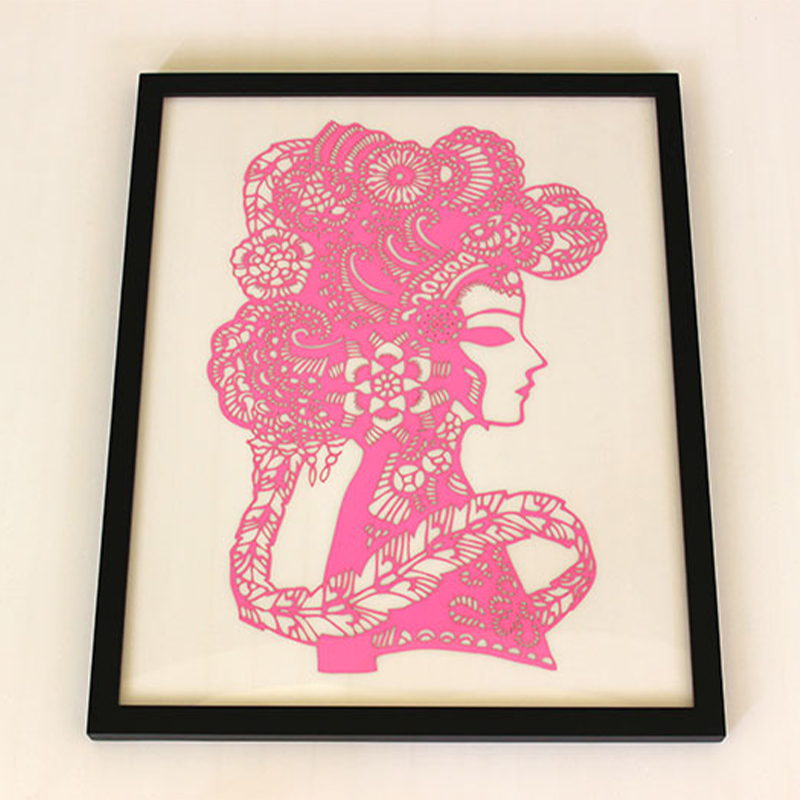

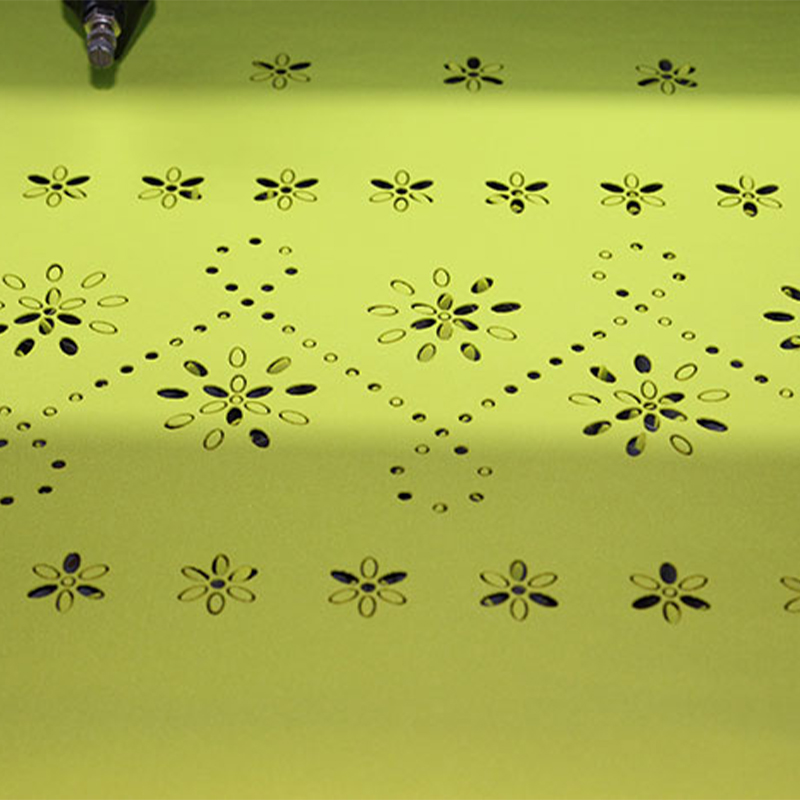

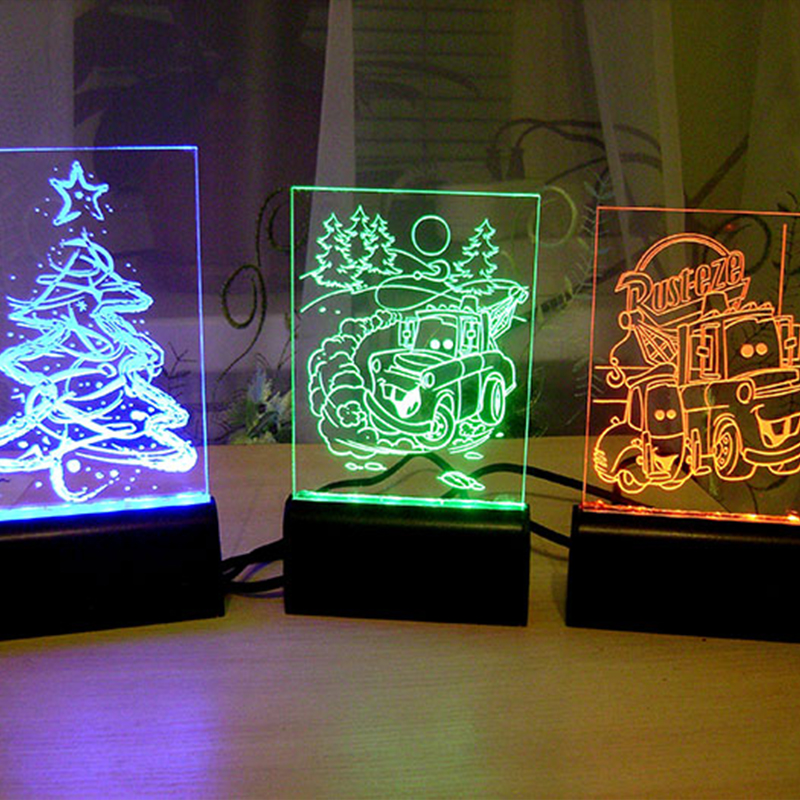

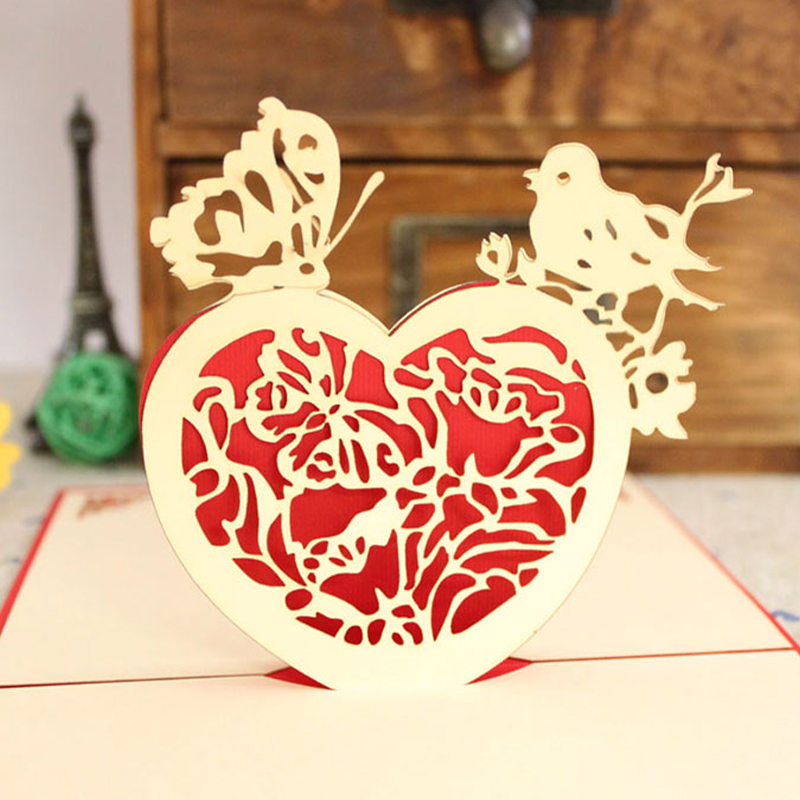

You can cut high quality wood, acrylic, PP, glass and other non-metallic materials. In clothing embroidery, leather products, electronic appliances, advertising decoration, packaging and printing industries are widely use.

✧ Operation Interface

The software of JOYLASER marking machine needs to be used in conjunction with the hardware of the laser marking control card.
It supports various mainstream computer operating systems, multiple languages, and software secondary development.

It also supports common bar code and QR code , Code 39, Codabar, EAN, UPC, DATAMATRIX, QR CODE, etc.

There are also powerful graphics, bitmaps, vector maps, and text drawing and editing operations can also draw their own patterns.

✧ Technical Parameter

Equipment model	JZ-1680
Laser type	CO2 sealed off glass tube laser
Laser wavelength	10.6um/10.2um/9.3um
Laser power	60w 80w 100w
Engraving range	1600mm *800mm
The maximum velocity curve	50000mm/min(Stepper motor）
Cutting speed	4000mm/min(Stepper motor）
The maximum scanning accuracy	2500DPI
Positioning accuracy	≤0.01mm
Working temperature	0℃-45℃
Operating Voltage	110-220VAC±10%/50Hz
