Mini Handheld Laser Welding Machine

Short Description:

Laser welding is a high efficient precision welding method which is in the use of high energy density laser beam as a heat source . Laser welding is one of the important aspects of laser processing technology. Laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melting and form the specific welding pool by controlling the laser pulse width, energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding for micro parts and small parts.

Send email to us

Product Detail

Product Tags

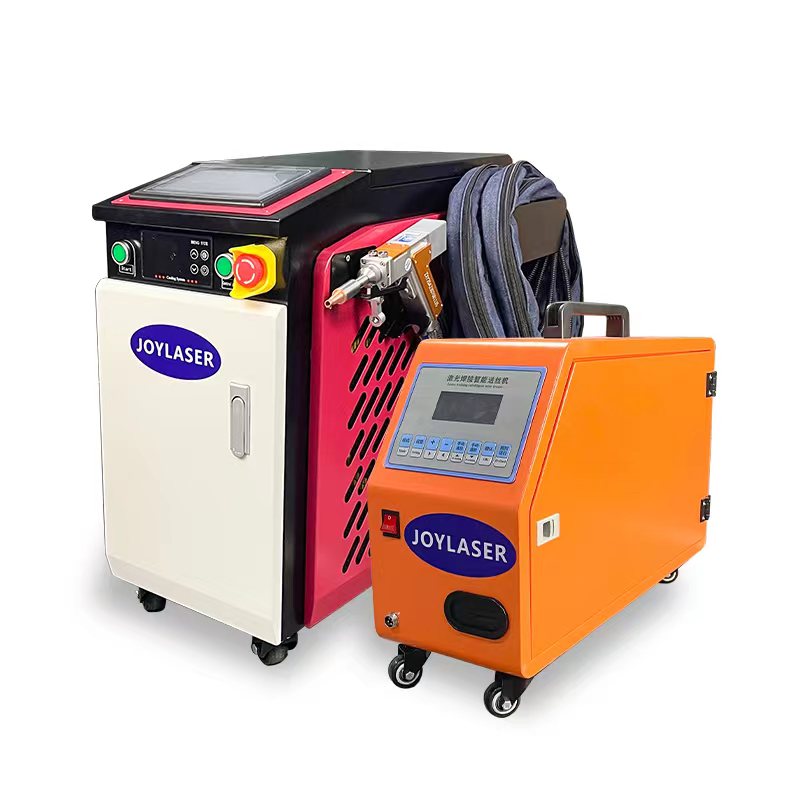

Jiazhun laser's handheld continuous laser welding machine is welding machine is widely used in many industries ,such as kitchen, household appliances, advertising, molds, stainless steel doors and widows ,handicrafts, household products, furniture, auto parts and so on.

The working mode of the handheld fiber laser welding machine is simple, hand-held welding, flexible and convenient, and the welding distance is longer.
The operation is simple, and you can work without a work permit. The weld seam is smooth and beautiful, which can reduce the subsequent grinding process, saving time and cost. The advantages of fast welding speed and no consumables. Laser welding is fast, 2-10 times faster than traditional welding, and one machine can save at least two welders a year. Welding of metal materials such as thin stainless steel plates, iron plates, galvanized plates, etc., can perfectly replace traditional argon arc welding, electric welding and other processes.

Each Part Function as below:

1: Touch Screen

Change the welding parameters via the touch screen control panel. The user could save the normal using parameter inside the system, and fast setting it before work.

2:Auto Wire Feeder

Our wire feeding system support max 3.0mm diameter metal wire, and with the double motor inside the machine case, which give the more stable support for the machine working.

3: Nozzle and Lens

Customized special nozzle for meet different work. Help use get the better welding effect. Whole machine very easy to learn, one person only need 10 minutes to become the skilled worker.

4: Laser Head

Handheld light Laser Welding head, only with 800g weight, which makes operator work more longer time per day. There have double protective lens, and the Temperature Sensor inside the laser head, which give the biggest protection.

5:Safety Clip

There have the red safety clip on the side of the laser head. The operator must fix the clip on the metal materials, then the machine could normal working. This is the protection for the operator, which give the more safe working environment.

✧ Technical Parameter

Equipment model	JZ-SC-1500W JZ-SC-2000W
Laser type	HANDHELD LASER WELDING MACHINE
Laser wavelength	1070nm±10
Laser frequency	1000-3000KHz
Voltage	220v
Motion mode	continuity
Light output mode	CW
weld speed	0-120mm/s
weld width	^0.1-20Ms
Solder joint point size	0.2-5.0mm
Cooling mode	Water cooling
Warrantly	2 years
