Nanosecond laser welding machine

Short Description:

Nanosecond welding adopts the latest welding process concept. It adopts the scanning welding method, can distribute laser energy arbitrarily, and has the characteristics of independently adjustable pulse width and frequency. After melting the material, a specific molten pool is formed to achieve the purpose of welding. It has an ultra-high cost performance. It is especially suitable for the welding of thin sheets of dissimilar non-ferrous metals; it is widely applicable to the welding of thin sheets of dissimilar non-ferrous metals.

Send email to us

Product Detail

Product Tags

Product features of nanosecond laser welding machine

1.The nanosecond laser welding machine has remarkable advantages. It has short pulses and a small heat-affected zone, ensuring the welding quality. It has high precision, is applicable to a wide range of materials, and has a fast speed. The weld seam is uniform, beautiful and has good performance. It is an ideal choice for high-quality, high-efficiency and high-precision welding in industrial manufacturing. Welding software can be used for direct drawing, and graphics designed by various drawing software such as Auto CAD and CorelDRAW can also be imported.

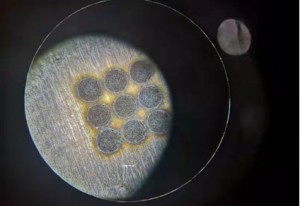

2.The laser energy is evenly distributed along the specified trajectory, avoiding the defect that the long-pulse energy is Gaussian distributed, and it is not easy to break through when welding thin sheets. The solder joint is composed of multiple nanosecond pulses with high peaks, which improves the absorption rate on the surface of non-ferrous metals. Therefore, non-ferrous metals such as copper and aluminum can be stably welded.

Parameter table of nanosecond laser welding machine

Equipment type JZ-FN
Laser wavelength	1064nm
Laser power	80W	120W	150W	200W
Maximum pulse energy	2.0mj		1.5mj
Pulse width	2-500ns		4-500ns
Laser frequency	1-4000Khz
Processing mode	galvanoscope
Scanning range	100* 100mm
Range of platform motion	400200300mm
Power requirement	AC220V 50Hz/60Hz
Cooling	Air cooling

Four guarantees, worry-free welding

Application scope of nanosecond laser welding machine

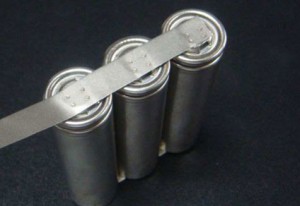

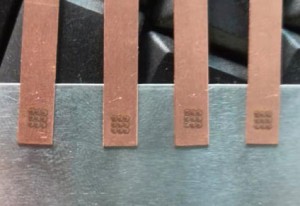

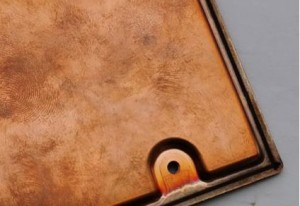

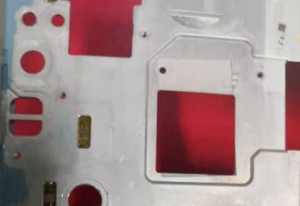

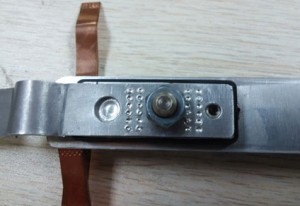

The nanosecond laser welding machine is widely used in the welding of materials such as copper-aluminum, uranium-magnesium, stainless steel-aluminum, nickel-aluminum, aluminum-aluminum, nickel-copper, copper-uranium, etc. Materials with thickness ranging from 0.03 to 0.2mm can be welded. It is applicable in fields such as mobile phone communication, electronic components, glasses and watches, jewelry and accessories, hardware products, precision instruments, auto parts, battery tab welding, mobile phone motor welding, antenna spring welding, camera welding, etc.
