Water-cooled laser handheld welding machine
Product Introduction
This water-cooled handheld laser welding machine has powerful performance and remarkable technical specifications. It can meet the diverse welding needs from thin plates to thick plates. The welding speed is extremely fast, which can significantly improve production efficiency. The spot size is precisely adjustable, ranging from 0.5 to 2.5, ensuring high-precision and consistency in welding.
Its well-designed water-cooling system has stable flow, sufficient pressure, providing a reliable guarantee for the long-term stable operation of the equipment, and can efficiently penetrate various metal materials.
And this water-cooled handheld laser welding machine has the functions of thin plate cutting and metal cleaning, saving you time, effort and worry.
Various parameters of the product

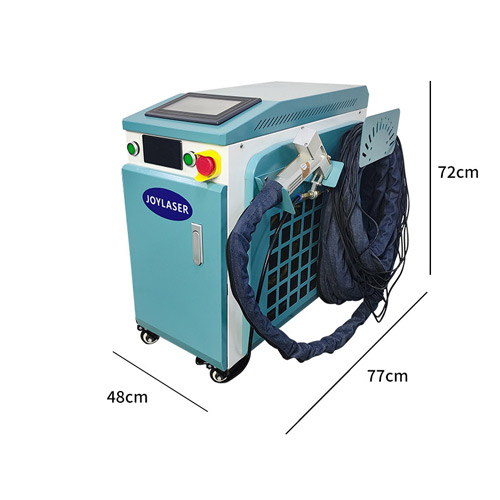

Product appearance size
Product parameter table
| Model | JZ-SC-1000/1500/2000/ |
| Power supply voltage (V) | AC220V 50/60HZ |
| Installation environment | Flat and vibration-free |
| Operating environment temperature (℃) | 10-40 |
| Operating environment humidity (%) | ＜70 |
| cooling mode | water cooling |
| Applicable wavelength | 1064nm(±10nm) |
| Applicable power | ≤2000W |
| Collimation | D203.5/F50 biconvex |
| Focusing | D20*3.2/F150plano-convex |
| Reflection | 30*14 *T2 |
| Protective mirror specifications | D20*2 |
| Maximum supported air pressure | 10bar |
| Vertical adjustment range of focus | ±10mm |
| Scanning width - welding | 0-5mm |
| F150-0~25mm | |
| Scanning width - cleaning | F400-0~50mm |
| F800-0~100mm(Non-standard configuration) |
Six major advantages, worry-free welding

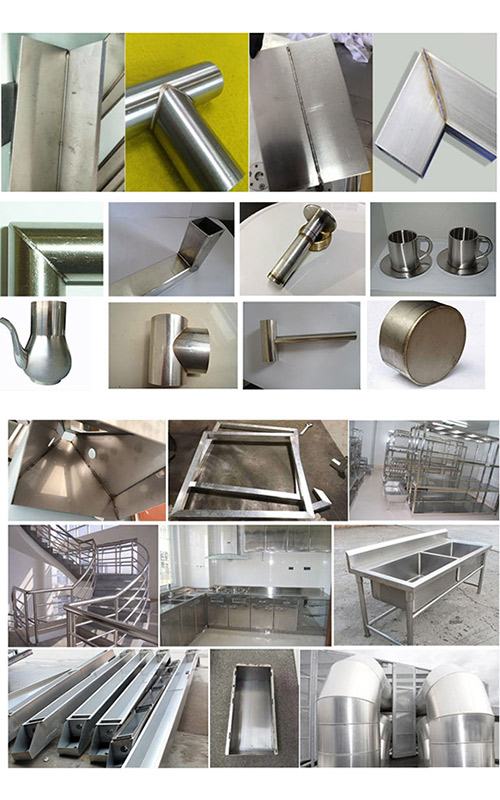

Application field
